Phason Plus Touch

Description

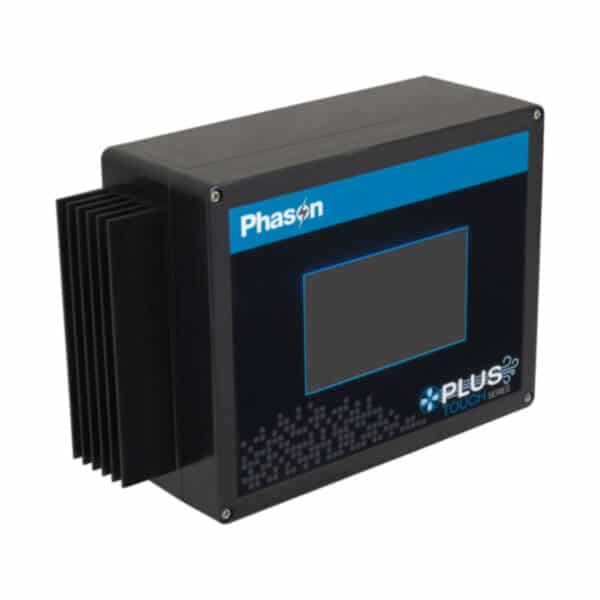

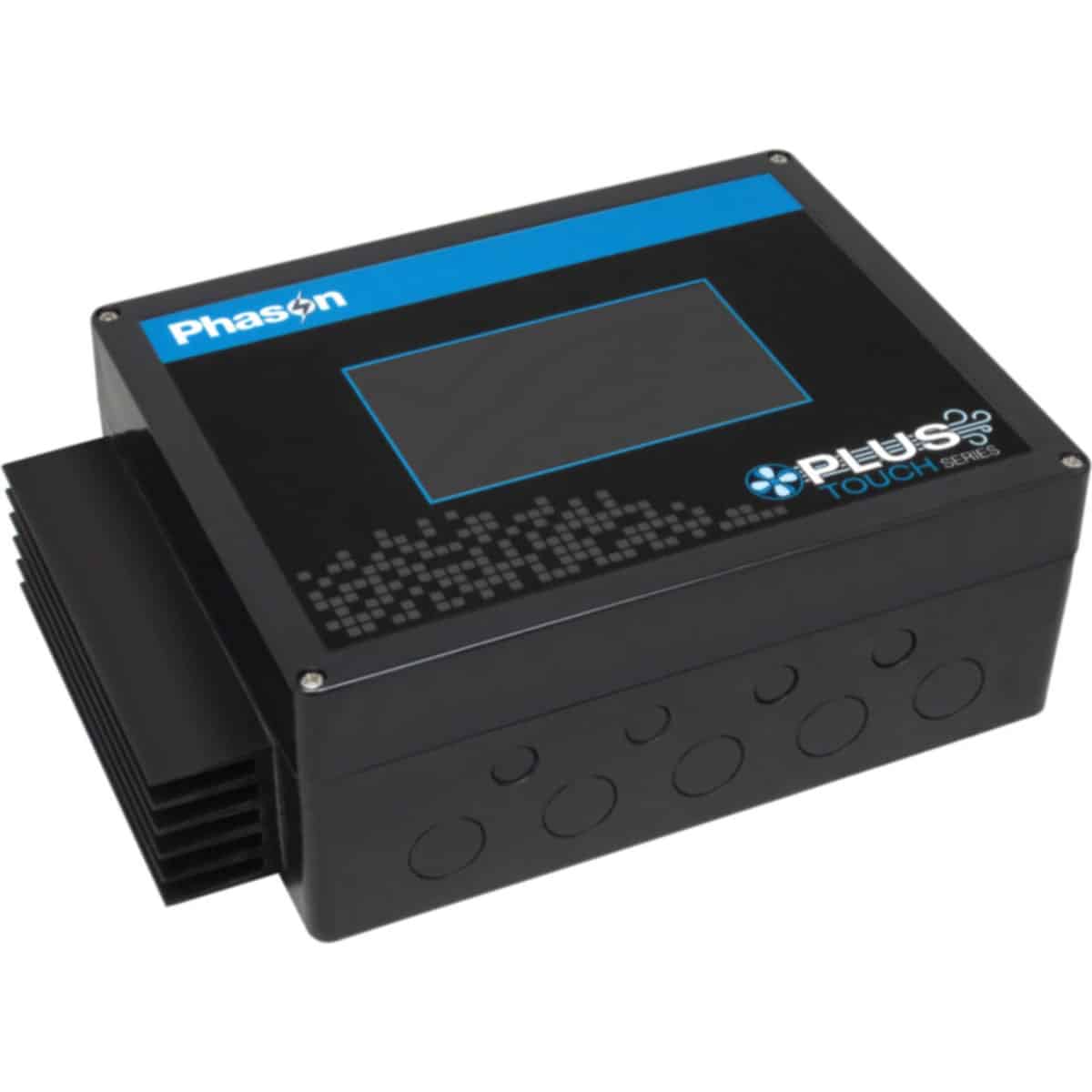

Phason Plus Touch

Model: PLUS-TOUCH

Downloads

• Feature Sheet
• User Manual
• QuickStart Guide
• Control Matrix

Smart Control for Barn Environments

The Phason Plus Touch from Phason Controls is a dependable touchscreen-based controller built specifically for managing barn environments. It’s ideal for dairy and beef cattle operations looking to maintain consistent climate conditions with minimal effort. With advanced dual-zone capability, this controller lets you manage two independent barn zones from one central interface.

Whether you’re upgrading an existing system or installing a new one, the Phason Plus Touch delivers flexibility and performance in a rugged, easy-to-use format. It’s also compatible with PEC Plus boards, making it an ideal choice for phased upgrades and retrofits.

Key Features

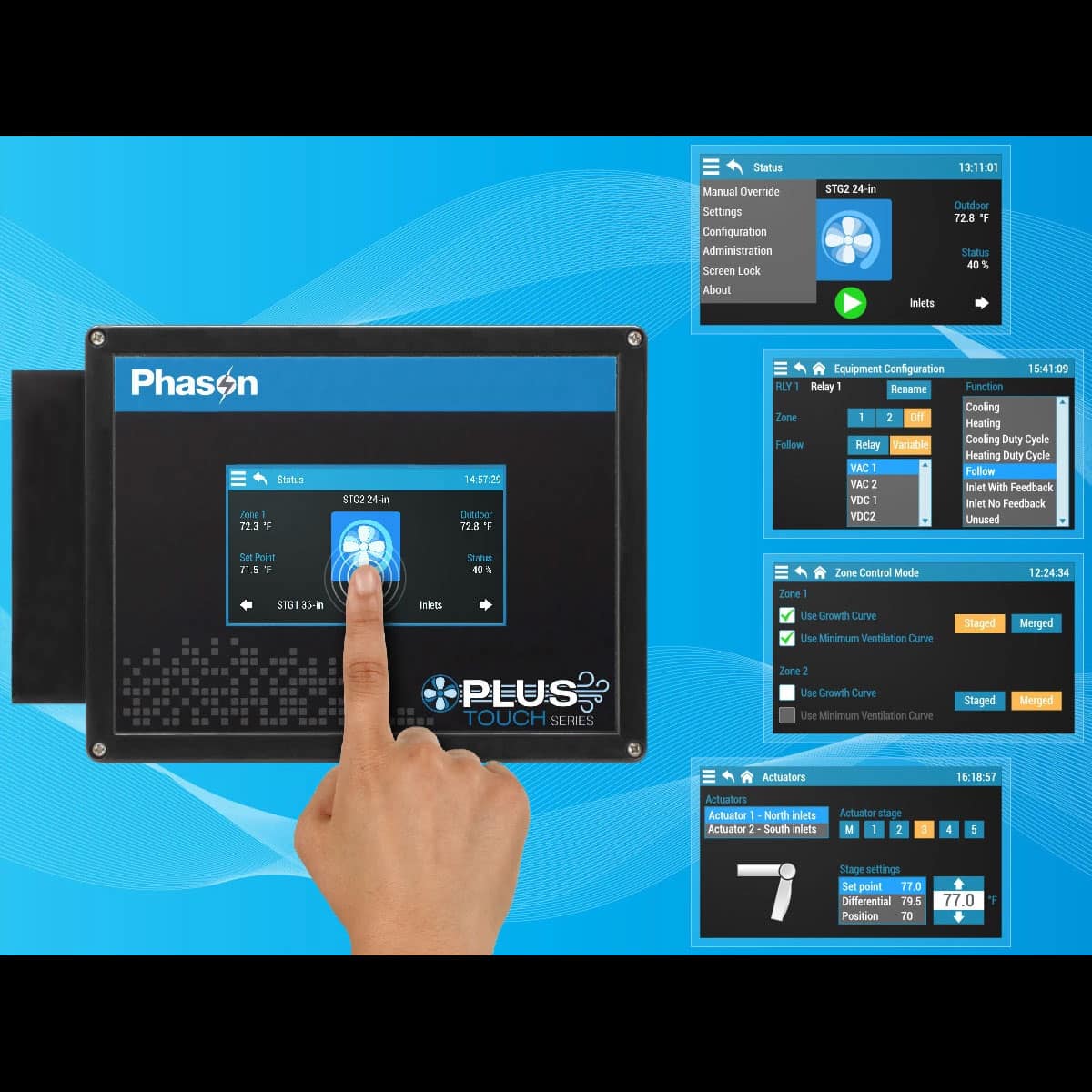

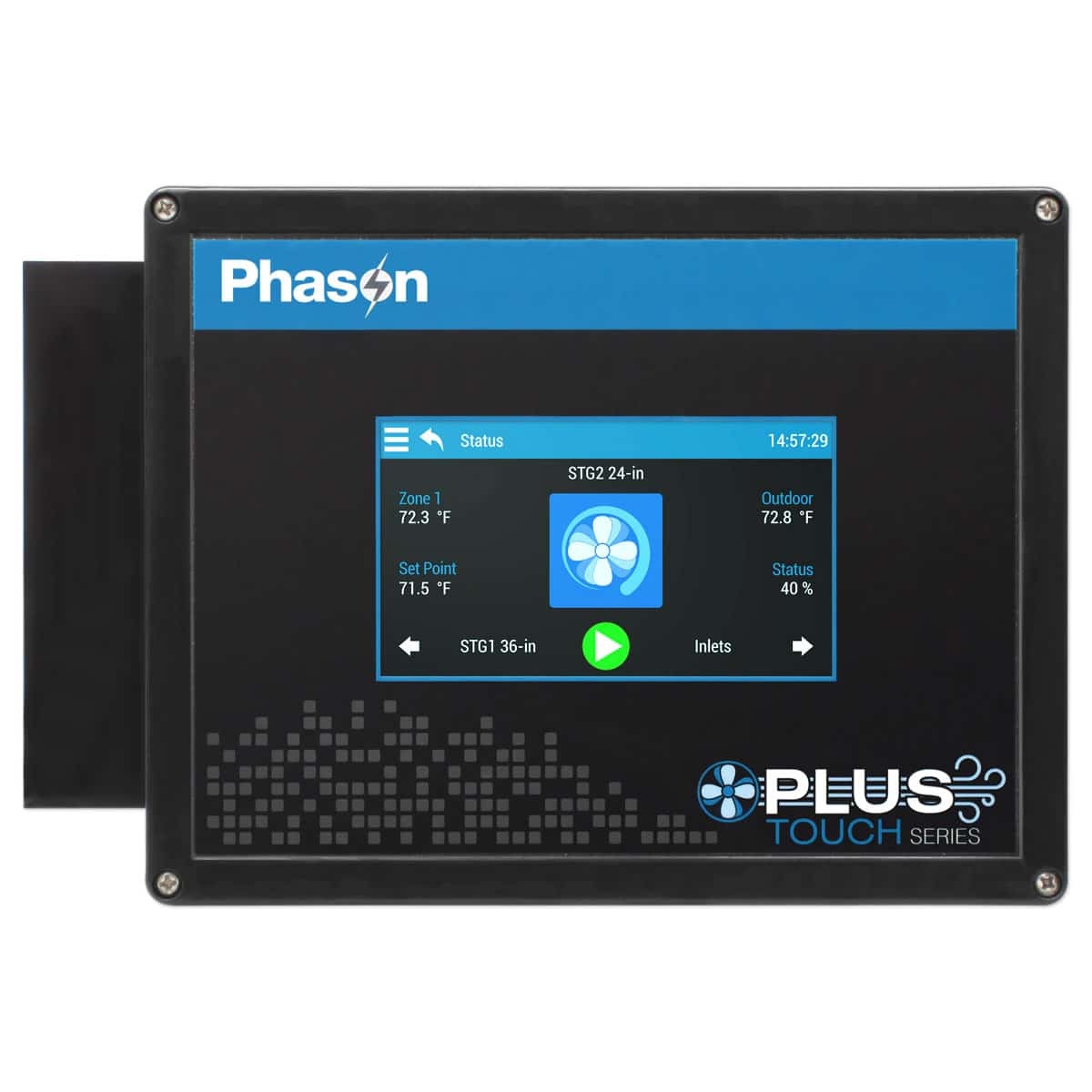

• 5-Inch Touchscreen Interface: Easy-to-navigate display for setup, monitoring, and adjustments
• Dual-Zone Control: Independently manage two barn zones with separate environmental parameters
• VentGrid™ Merged Ventilation: Smoother fan staging for consistent airflow and comfort
• Growth and Ventilation Curves: Automatically adjust environmental set points as needs evolve
• Manual Override Mode: Immediate control for quick response to changes or emergencies
• Security Lock: PIN-protected screen prevents unauthorized changes
• USB Support: Update firmware or transfer settings via USB flash drive
• Durable Enclosure: NEMA 4X rated for resistance to dust, water, and corrosion

Control Capabilities

• Variable and fixed-speed fans
• Electric or gas heaters, furnaces, and heat lamps
• Misters, foggers, and sprinklers for cooling
• Actuated curtains and inlets
• Lighting systems with on/off or timed control
• Duty-cycle equipment like feeders or scrapers
• Alarm system integration

Monitoring Capabilities

• Temperature (Phason 3K Series sensors)
• Humidity (DOL 114)
• Ammonia (NH₃) levels (DOL 53)
• Carbon dioxide (CO₂) levels (DOL 119)
• Outdoor temperature monitoring
• Light levels (DOL 16)

Frequently Asked Questions

• Can the Plus Touch control a misting system? Yes. With two zones and six relays, the Plus Touch can support two independent misting systems. These can be configured as temperature-controlled duty cycles.
• Can I control a pump by humidity? Yes. While temperature is the primary control mode, you can configure a cooling relay with a high set point so it won’t activate by temperature. Then, assign a humidity sensor as a secondary modifier to switch the pump on or off based on humidity.
• Can I control equipment that requires a 0 to 10 VDC signal? Yes. You can connect a VDC-4 (Variable DC Module), which provides four 0–10 VDC outputs for controlling variable heating or cooling equipment.
• Do I need the KPT-DISPLAY or the KPEC-PLUS TOUCH? It depends. Use the KPEC-PLUS TOUCH kit to upgrade a PEC-PLUS-RS board to a Plus Touch. Use the KPT-DISPLAY kit to replace a damaged display on an existing Plus Touch. PEC-PLUS-RS boards feature a large black heatsink, while Plus Touch boards have a small power supply instead.
• How big is the control? The enclosure measures 9 x 7 x 3.75 inches (23 x 18 x 9.5 cm). The attached heatsink adds approximately 1.25 inches (3.5 cm) to the overall width.

Built to Last

Certified for CSA and CE standards, the Phason Plus Touch is built to withstand the harsh conditions of barn environments. It operates in temperatures from -13°F to 125°F and comes equipped with 6 general-purpose relays, 2 variable fan stages, and optional analog outputs for added versatility.

If you’re looking for a proven, adaptable solution for barn climate management, the Phason Plus Touch delivers the reliability and control needed for a well-regulated operation.

Click here to contact us today to learn how it can support your operation.
