Gordie Jones Fans
Positive Pressure Ventilation Fan

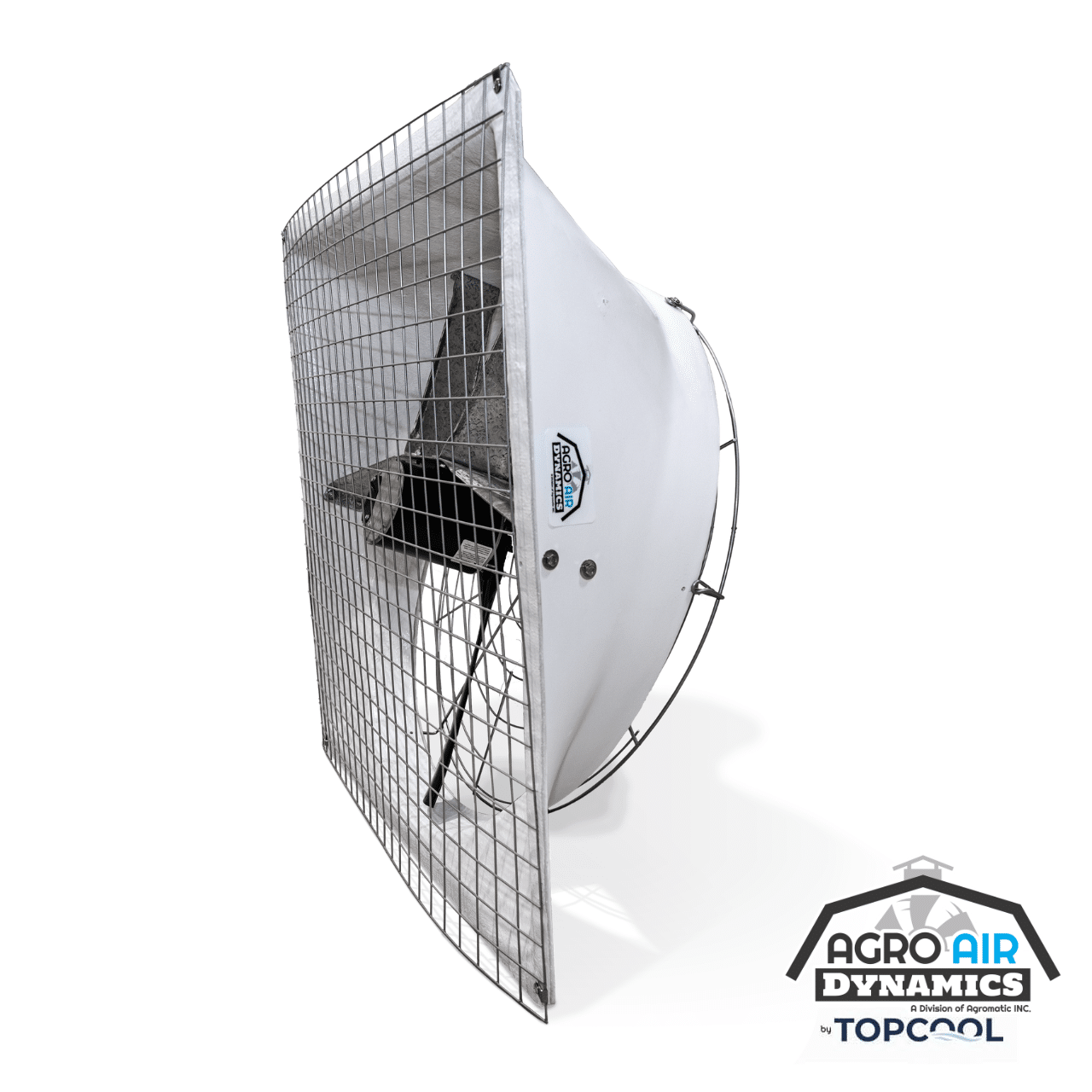

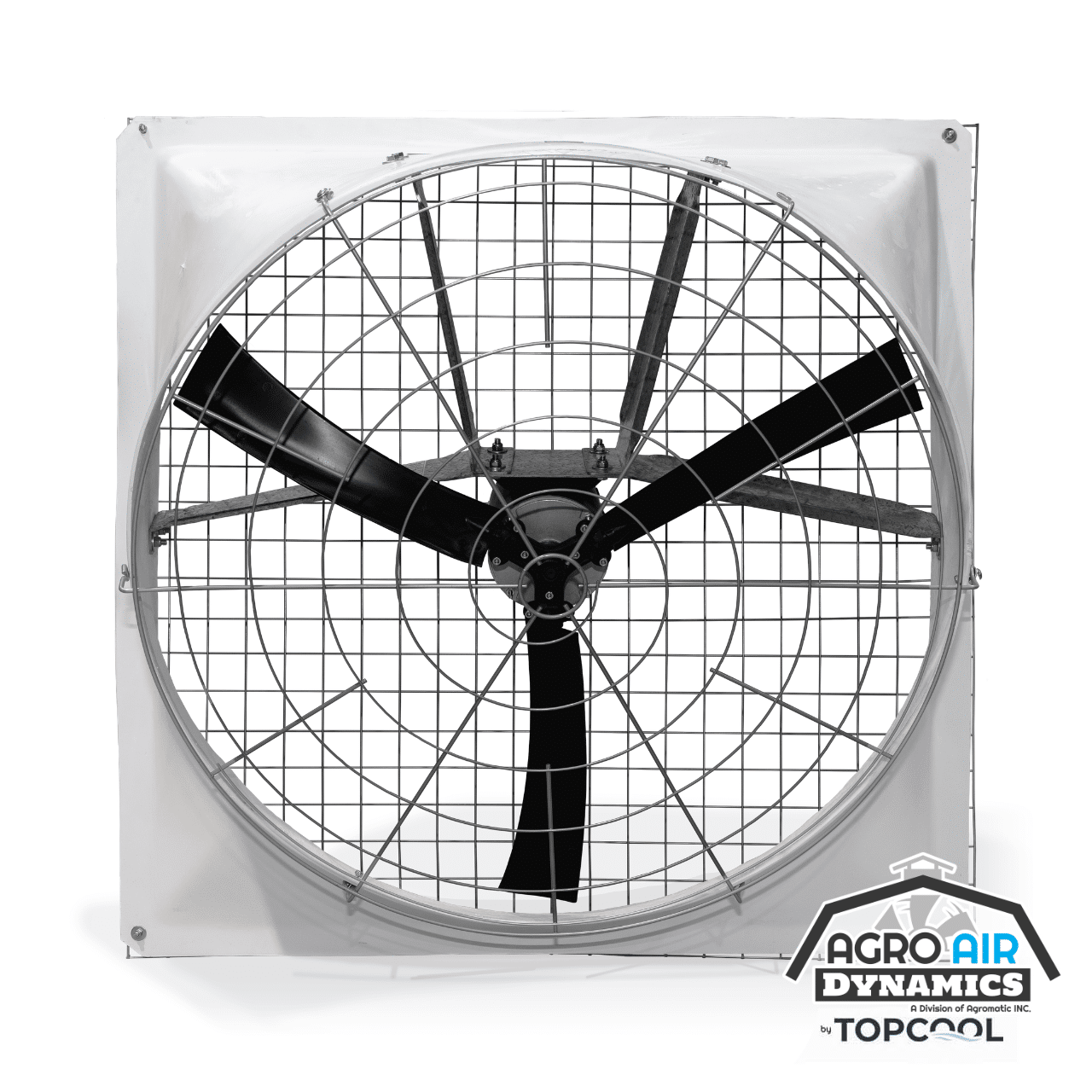

Fresh air everywhere. Gordie Jones Fans are 36″ side-wall, positive pressure fans designed to bring fresh air directly to cow level in All-Seasons Hybrid dairy barns. Installed along the barn wall and tilted down toward the stalls, these direct-drive fans help exchange barn air while creating consistent airflow across beds and feed lanes.
- 36″ direct-drive positive pressure fan
- Designed for side-wall installation in dairy barns
- Helps deliver fresh air to beds and feed alleys
- Durable fiberglass composite housing

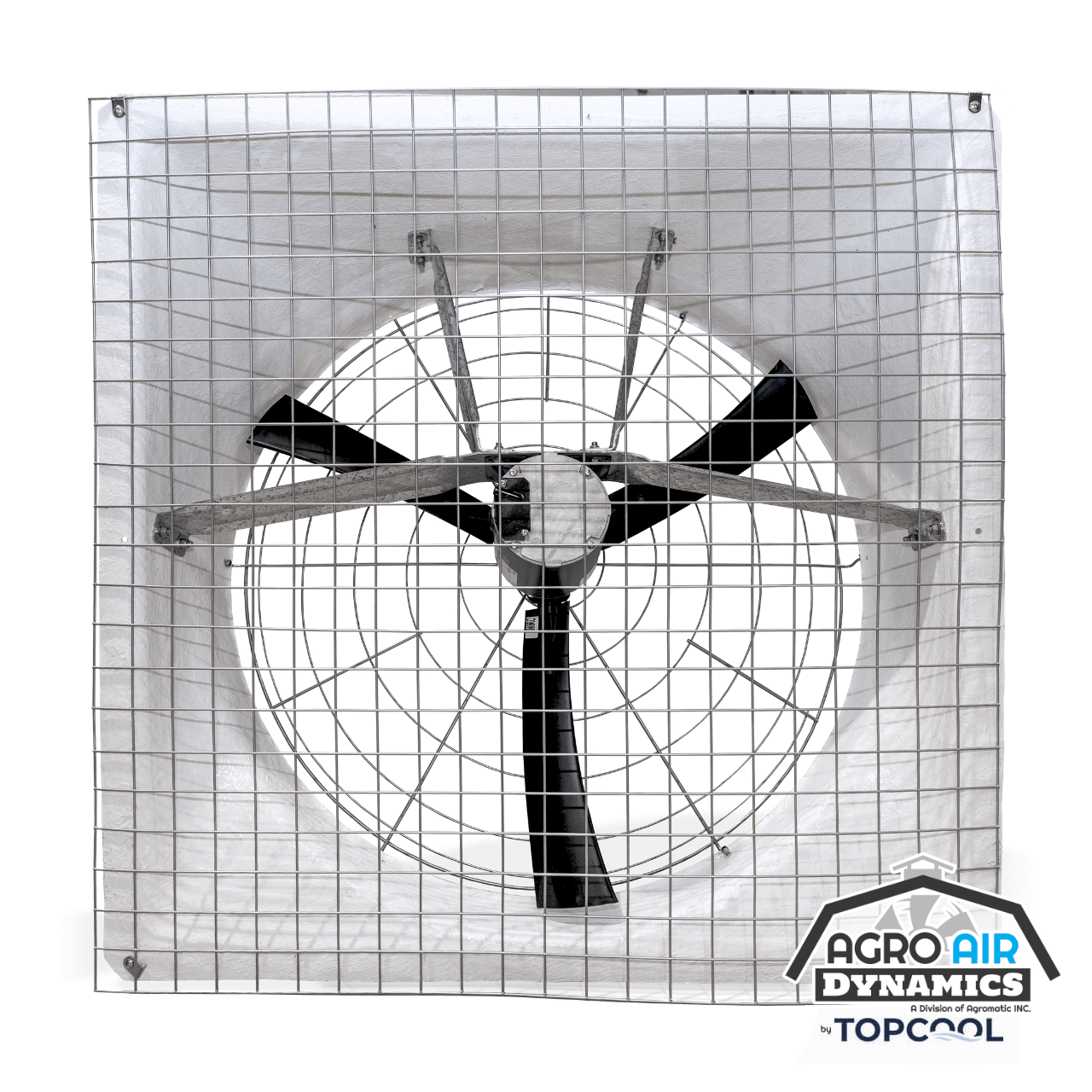

- Front and rear guard included
- Available in 1-phase or 3-phase motor options
Documentation
Description
Gordie Jones Fans – Fresh Air Everywhere for Dairy Barns
The Gordie Jones Fan from Agro Air Dynamics is a 36″ side-wall, positive pressure fan designed to deliver fresh air where cows need it most. By directing air downward toward the stalls, Gordie Jones Fans help improve cow-level airflow, reduce heat stress, and create a more consistent barn environment.
In All-Seasons Hybrid dairy barns, these fans are typically spaced approximately 10 feet apart to support two important ventilation goals: exchanging barn air and creating cow-level airflow. In warm conditions, the system targets approximately 60 air changes per hour while helping deliver roughly 10-14 mph airflow over beds and approximately 7 mph near the feed lane.
The result is a more uniform fresh-air environment across the barn, helping reduce dark-spot bunching, improve stall dryness and cleanliness, and keep cows more comfortable year-round.
Key Features of Gordie Jones Fans
- 36″ Direct-Drive Design: Compact, efficient fan built for side-wall fresh air delivery.
- Positive Pressure Ventilation: Helps push fresh air into the barn and distribute it to cow level.
- Cow-Level Airflow: Angled installation directs air toward stalls, beds, and feed alleys.
- Durable Housing: Fiberglass composite housing is UV-resistant and corrosion-free.
- Smooth, Round Housing: Designed to maximize efficiency and reduce cleaning frequency.
- Certified Motors: Motors are cULus or CE certified.
- Stainless Steel Hardware: Built for long-term durability in demanding dairy environments.
- Front and Rear Guard Included: Standard guarding helps support safe operation.
Benefits of Gordie Jones Fans
- Fresh Air for Every Cow: Helps distribute outside air more evenly throughout the barn.
- Reduced Heat Stress: Supports cow comfort during warm weather and high heat conditions.
- Cleaner, Drier Stalls: Improved airflow can help reduce moisture buildup around stall areas.
- More Uniform Air Quality: Helps eliminate stagnant areas and improve consistency across the barn.
- Year-Round Ventilation Support: Can be dialed back for low, continuous air exchange in cooler weather.
- Energy-Sensible Fresh Air Delivery: Helps provide targeted airflow without over-ventilating when conditions do not require it.
Installation Notes
Gordie Jones Fans are designed for side-wall installation and should be angled down toward the stalls to help drive fresh air to cow level. The coverage area is based on an average airspeed of 400 FPM at cow level, measured 3 feet above the ground. Some regions may require 600 FPM; consult an Agro Air Dynamics representative for ventilation design support.
Fan dimensions: 43-5/16″ x 43-5/16″
Wall opening: 39-3/8″ x 39-3/8″
Frequently Asked Questions
Q: What is a Gordie Jones Fan used for?
A: Gordie Jones Fans are used to deliver fresh air into dairy barns through side-wall positive pressure ventilation. They are designed to direct air down toward cow level, helping improve airflow across beds and feed lanes.
Q: Where should Gordie Jones Fans be installed?
A: These fans are designed for side-wall installation and are typically tilted down toward stalls so fresh air reaches cows where they rest, eat, and move throughout the barn.
Q: How does a Gordie Jones Fan help reduce heat stress?
A: By increasing air exchange and creating cow-level airflow, the fan helps move fresh air across the barn and reduce stagnant areas where heat and humidity can build up.
Q: What motor options are available?
A: Gordie Jones Fans are available in 1-phase and 3-phase configurations. Both models are 36″ direct-drive fans with 1/2 HP motors.
Q: Are guards included?
A: Yes. Gordie Jones Fan models include front and rear guards.
Q: What makes the housing durable?
A: The housing is made from a fiberglass composite that is UV-resistant and corrosion-free, making it well suited for demanding dairy barn environments.
Q: Can these fans be used year-round?
A: Yes. In warm conditions, the fans support higher air exchange and cow-level cooling. In cooler weather, they can be dialed back for lower continuous air exchange to help avoid freezing or steaming conditions while still bringing in fresh air.
